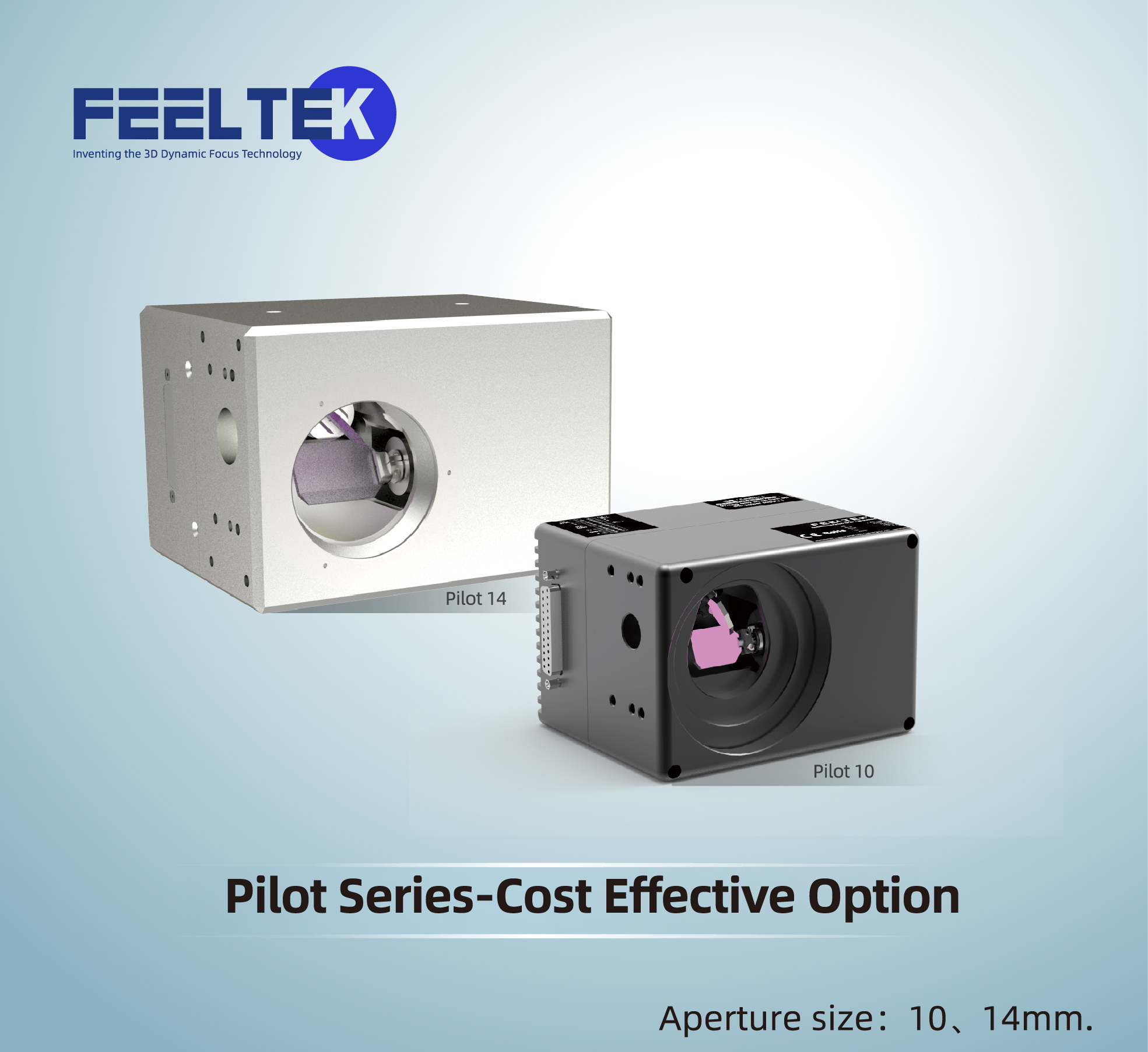

Raupapa Pilot-Utu Kōwhiringa Whaihua

Pilot Series-Cost Effective Option Image Featured

Whakaahuatanga Poto:

Ko te Pilot he tono motuhake me te tere tere me te
pū tiketike, Ko te scanhead whai hua utu pai tenei.
Ko te whakakotahitanga me te tere tere me te whakaheke o te pupuhi.
Rahi tuwhera: 10, 14mm.

Tukuna he imeera ki a matou

Taipitopito Hua

Tohu Hua

Ataata Taupānga

Nga korero Hangarau Hua

Raina hua

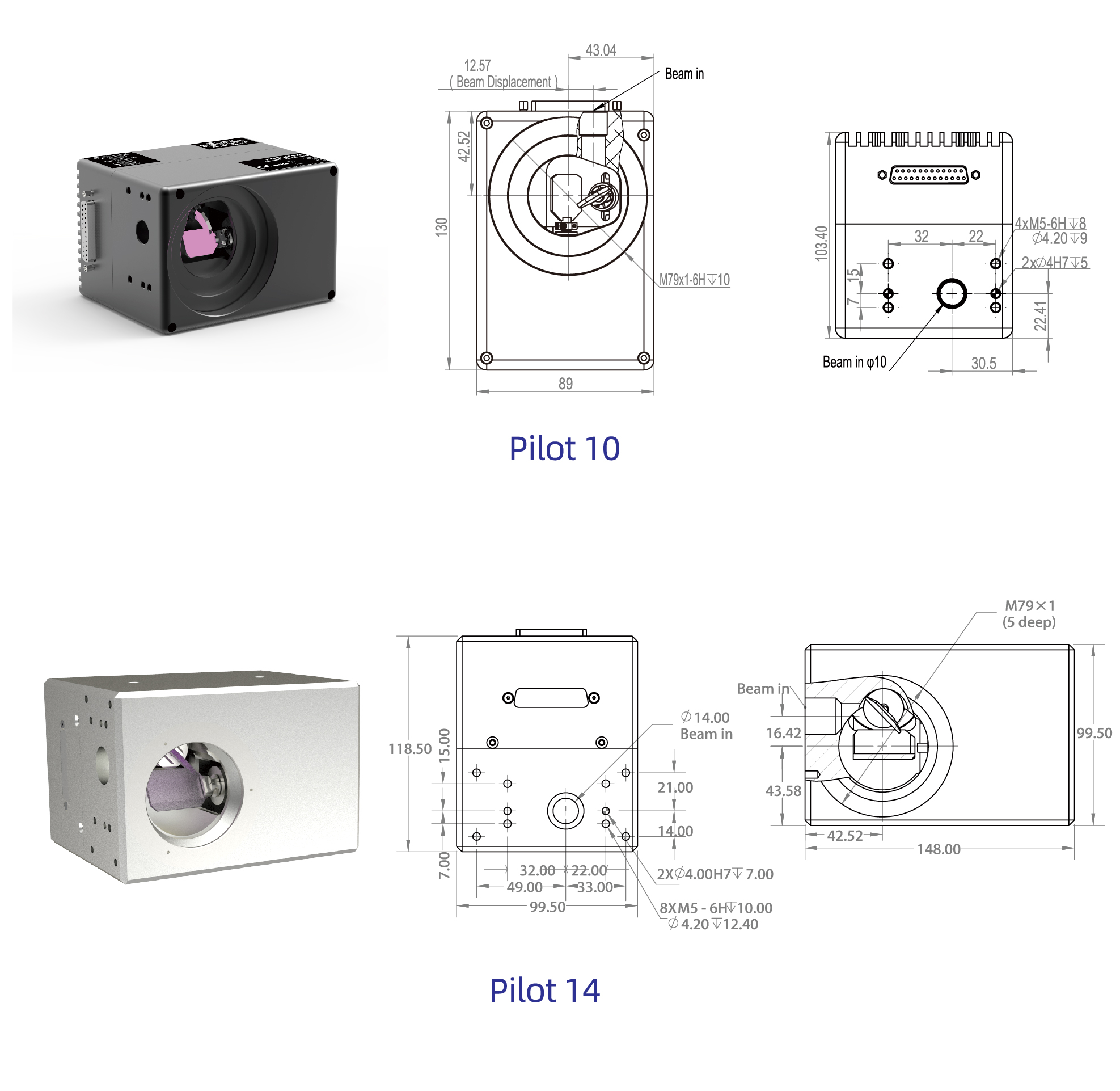

Momo	Putanga	taumaha(KG)	Rahi(mm)	lnput ngaohiko	Ngaohiko Putanga(VDc)	Nāianei(A)	Kawa
Kaiurungi 10	Putanga Paerewa	1.3	130x89x103.4	100V60HZ 220V50HZ	±15	5	Kawa XY2-100
Kaiurungi 14	Putanga Paerewa	2.9	147x120x116	100V60HZ 220V50HZ	±15	5	Kawa XY2-100

Whakatakotoranga Optical

Momo	Rahi tuwhera(mm)	Te roangaru e waatea ana	Rauemi Optical	Mata Mata
Kaiurungi 10	10	355 532 980/ 1064 9400/ 10640	1/4λ@633 Wāhanga 1 /8λ@633	Si / Qu
Kaiurungi 14	14	355 532 980/ 1064 10640	1/4λ@633	Si / Qu

Nga Taapapa Galvanometer

Momo	Kaiurungi 10	Kaiurungi 14
Matawai Koki(°)	±10	±10
Te Tukurua(μrad)	5	5
Te Pukenga Rawa (ppm/k)	50	50
Max.Oﬀset Panuku(μrad/k)	15	15
Panuku roa mo te 8h(mrad)	≤0.1	≤0..08
Hapa Aroturuki(μs)	<80	<210
Wā Whakautu Wāhanga 1% o te Tauine Katoa (μs)	<240	<390
Tere Tohu Tikanga (m/s)	5.5	4
Tere Turanga Tikanga 2(m/s)	20	12
Tohunga Pūāhua Angamaheni (cps)	750CPS Kounga Pai 1000CPS Tuhituhi Pai	500CPS Kounga Pai 700CPS Tuhituhi Pai

1)1% te whakautu taahiraa 2)2D scanhead whakamahi F160 F-θ arotahi 3) F160 F-θ arotahi,1mm teitei te ahua raina kotahi, rorohiko LenMark me te kaari whakahaere FEELTEK
